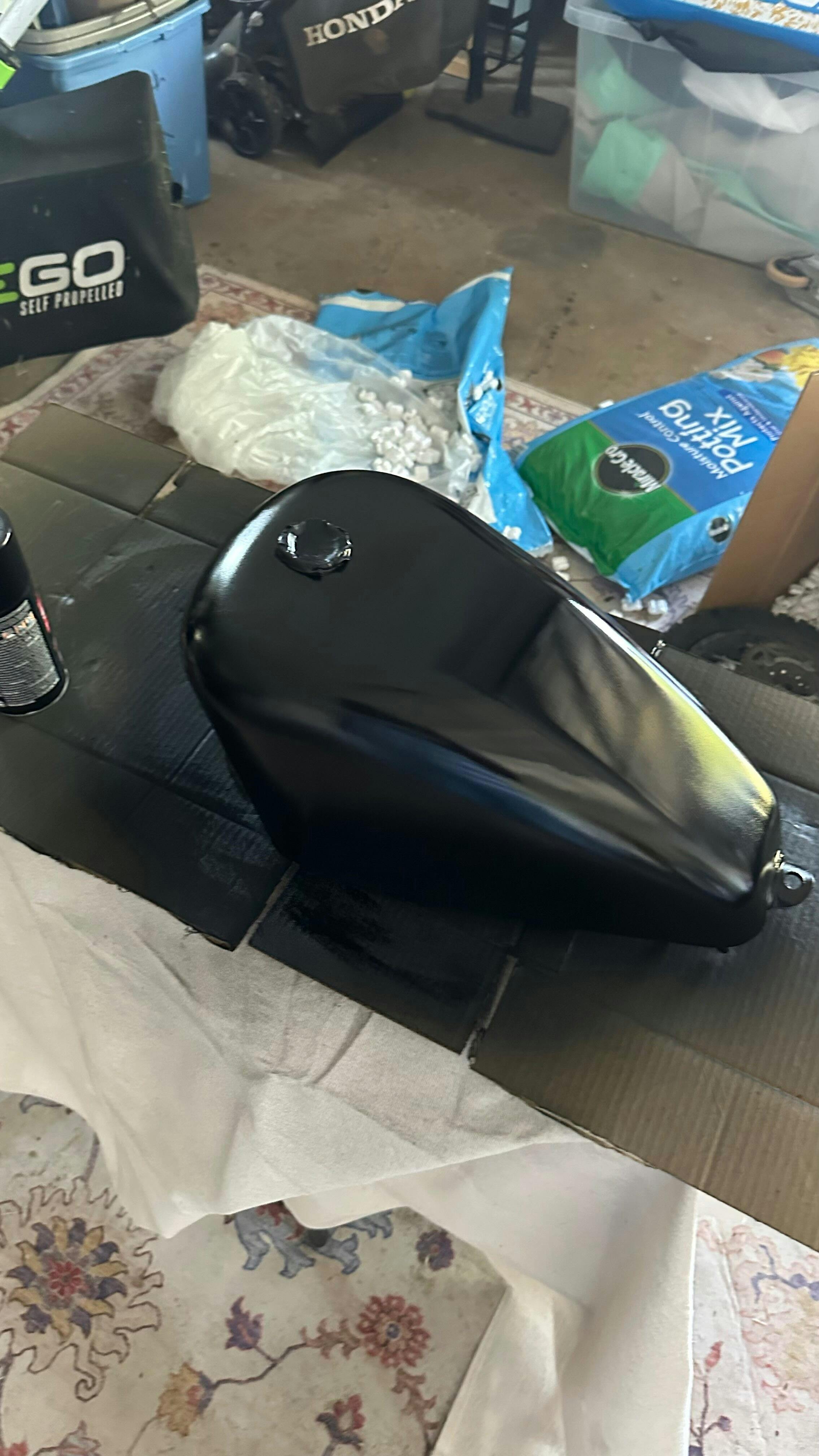

This hand made custom peanut gas tank for the Honda Shadow VT750 Phantom, AERO, Spirit, EFI Models is the answer to what to do with that stupidly wide Honda Shadow stock tank!!!
Each Honda Shadow Gas Tank includes a vented custom TJ Brutal Customs gas cap that prevents leaking onto your expensive paint and 2 fuel lines. This Tank also comes with the EFI Tank Fuel Reserve Sensor Plug. Also, You can use the stock Honda Shadow Phantom fuel lines, use the included custom fuel lines, or keep them as spares! This tank does not require a petcock.
This TJ Brutal Customs Honda Shadow Gas tank will fit the following Honda Shadow models ONLY:
- 2010 VT750C2B A PHANTOM
2010 VT750C2B AC PHANTOM
- 2011 VT750C-A AERO
2011 VT750C-AC AERO
2011 VT750C2B A PHANTOM
2011 VT750C2B AC PHANTOM
- 2012 VT750C-A AERO 1
2012 VT750C-AC AERO 1
2012 VT750C2 A SHADOW SPIRIT 750
2012 VT750C2 AC SHADOW SPIRIT 750
2012 VT750C2B A PHANTOM
2012 VT750C2B AC PHANTOM
2012 VT750C2F A SHADOW SPIRIT 750
2012 VT750C2F AC SHADOW SPIRIT 750
2012 VT750CA A AERO
2012 VT750CA AC AERO
- 2013 VT750C A AERO
2013 VT750C AC AERO
2013 VT750C2 A SHADOW SPIRIT (MONO TONE)
2013 VT750C2 AC SHADOW SPIRIT (MONO TONE)
2013 VT750C2B A PHANTOM
2013 VT750C2B AC PHANTOM
2013 VT750C2F A SHADOW SPIRIT (W/FLAME)
2013 VT750C2F AC SHADOW SPIRIT (W/FLAME)
2013 VT750CA A AERO
2013 VT750CA AC AERO
- 2014 VT750C-A AERO
2014 VT750C-AC AERO
2014 VT750C2 A SHADOW SPIRIT 750
2014 VT750C2 AC SHADOW SPIRIT 750
2014 VT750C2B A PHANTOM
2014 VT750C2B AC PHANTOM
2014 VT750C2F A SHADOW SPIRIT 750
2014 VT750C2F AC SHADOW SPIRIT 750
2014 VT750CA A AERO
2014 VT750CA AC AERO
- 2015 VT750C-A AERO
2015 VT750C-AC AERO
2015 VT750C2B A PHANTOM
2015 VT750C2B AC PHANTOM
- 2016 VT750C-A AERO
2016 VT750C-AC AERO
2016 VT750C2B A PHANTOM
2016 VT750C2B AC PHANTOM
- 2017 VT750C2B A PHANTOM
2017 VT750C2B AC PHANTOM
- 2018 VT750C-A AERO
2018 VT750C-AC AERO
2018 VT750C2B A PHANTOM
2018 VT750C2B AC PHANTOM
- 2019 VT750C A SHADOW 750
2019 VT750C AC SHADOW 750
2019 VT750C2B A PHANTOM
2019 VT750C2B AC PHANTOM
- 2020 VT750C-A AERO
2020 VT750C-AC AERO
2020 VT750C2B A PHANTOM
2020 VT750C2B AC PHANTOM
This is not a sporty tank that has been hacked apart, with a badly welded tunnel. This custom, hand made fuel tank doesn't sit 3 inches off your backbone leaving you with a massive gap between the end of the gas tank and frame. This tank sits perfectly on the backbone of your bike, is made by hand specifically for your EFI Honda Shadow Phantom, Honda Shadow Aero and Honda Shadow Spirit model and will last for years to come.
- These Custom Honda Shadow Gas Tanks are raw steel and will rust if left unpainted or plated just as any other tank would.
- We recommend using Redkote to line the gas tanks as this will give your tank YEARS of life, hauling your butt around the blacktop!
- Gas Tank Dimensions are - 16"L, 9.25"W, 8"D
- Capacity - Approx. 2.5 gallons+-. Capacity can vary by up to 1/4 gal depending on fuel temperature.
- This tank does not include a sight gauge.
Sit your EFI Honda Shadow Phantom, AERO or Spirit upright as if you were going to ride it, have a seat and set the gas tank on the frame. While you are sitting on the bike, hold the gas tank and turn your bars left and right to make sure the tank is positioned far enough back on the backbone so it doesn't hit the risers or the bars when you turn them all the way, yet far enough forward that the rear tab is not hanging off the backbone. You can zip tie, or tape the gas tank to the backbone during this fit process if you'd like, it also helps if a friend moves the bars for your while you hold the tank steady.
Once you have determined your bars wont hit the tank at full lock, mark where the front mounting tab is with a marker, and check that your rear tab isn't hanging off the back of the backbone, if it is you may need to re-adjust. In this case, wipe off the original marker and start over. Once you've decided on where to mount the tank, center punch the frame where you want the tabs to bolt to and drill a 5/16" hole. You can then thread this with a 3/8-16" tap. You will preferably want to do the front mounting hole first, thread a bolt in and then locate, center punch, drill and tap the rear mounting point.
This Tank comes with the EFI Tank Fuel Reserve Sensor Plug. We added this bung to the tank, in the case that you wanted to relocate the reserve sensor light elsewhere on your custom build. However some of you may not want the dummy lights or have the reserve sensor bung available, so we offer you this plug to simply thread into the reserve sensor bung and keep the bike looking clean!
You can also use this to plug your stock tanks fuel reserve sensor bung as well!
This plug includes a copper washer, and we recommend using t-tape (teflon tape) on the threads of the plug before installing
**Note: To prevent spillage from fuel expansion and vibration, do not overfill, fill within about an inch from the filler neck. You need to line these tanks, we recommend Red-Kote. You must line your tank as you do all tanks.
