Complete Performance Carb Rebuild and Tuning Kit - Honda Shadow VT600 VLX 1999-2007 Single Carb
Complete Performance Carb Rebuild and Tuning Kit - Honda Shadow VT600 VLX 1999-2007 Single Carb

    Complete Performance Carb Rebuild and Tuning Kit - Honda Shadow VT600 VLX 1999-2007 Single Carb

    $ 119.99 $ 199.99


    Quantity
      • Fitment
        Year Make Model
        1999-2007 Honda Shadow VLX 600 VT600C
        1999-2007 Honda Shadow VLX 600 VT600CD Deluxe
      • Shipping & Return Info
        • arrow

          Free Shipping on US orders over $299

        • arrow

          Orders Ship within 2 business days

        • arrow

          Hassle-Free Return Process

      This Complete Performance Rebuild Kit is the only carburetor rebuild kit that includes literally everything you need to get your carburetors in the absolute best performing condition!
      If you pick up one of these rebuild kits you do NOT need a Performance Tuning Kit as well.
      Your carburetor can be a daunting task and even more so when you don't have the proper parts. That great barn find that has 200 miles on it has been sitting with carbs full of ancient fossil fuels for 15 years and now she's yours. Why mess around with trying to use corroded parts and old rubber seals when you can easily replace them and eliminate these parts as a source of tuning headaches?!?! With this kit you can rebuild your own carbs to better than new condition

      This Kit Fits:

      • Honda Shadow VT600, VLX, Steed 1999- 2007 (single carb models ONLY)

      Does not fit VT700 or VT500 models.
      This kit is intended to work with our velocity stacks and exhaust for VT600 carbureted models. This kit may work with other aftermarket intakes and aftermarket exhaust systems that are more free flowing than stock.

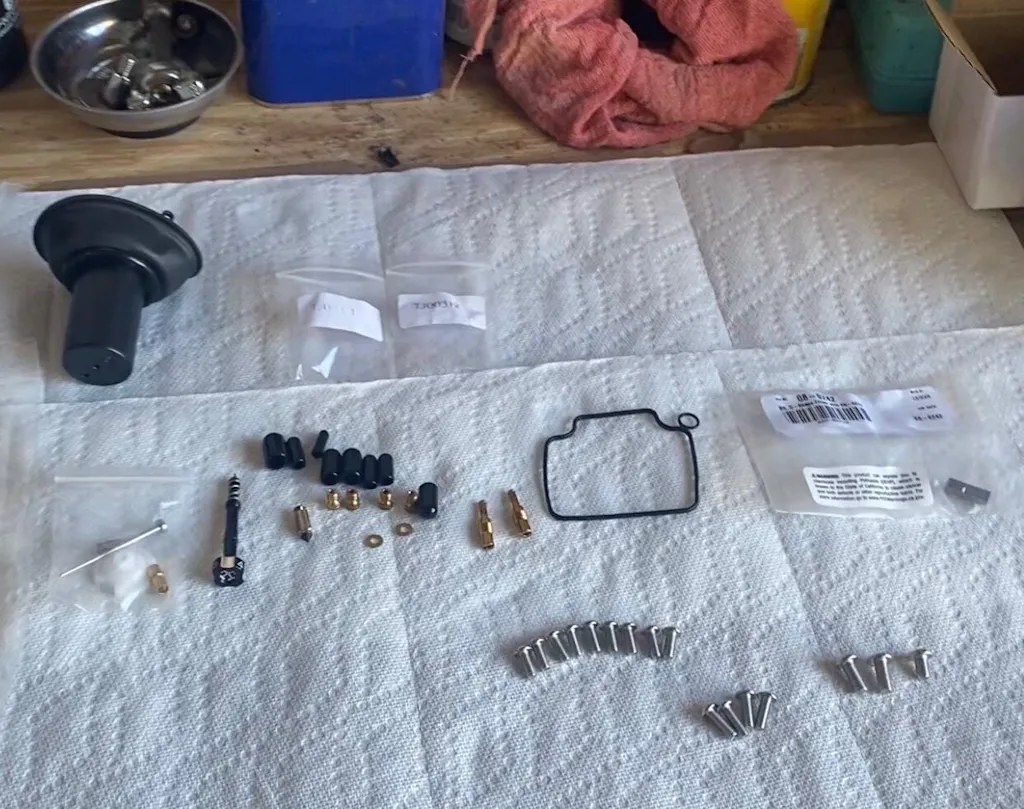

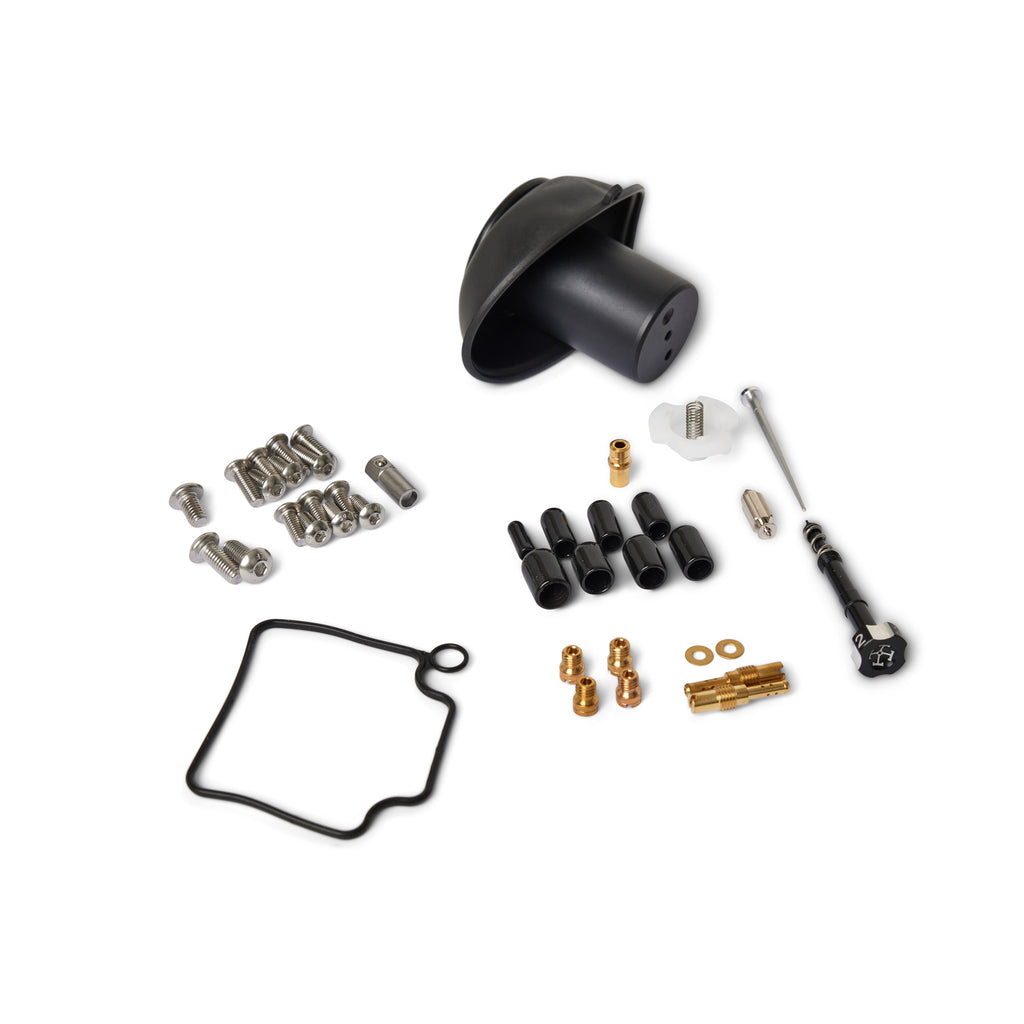

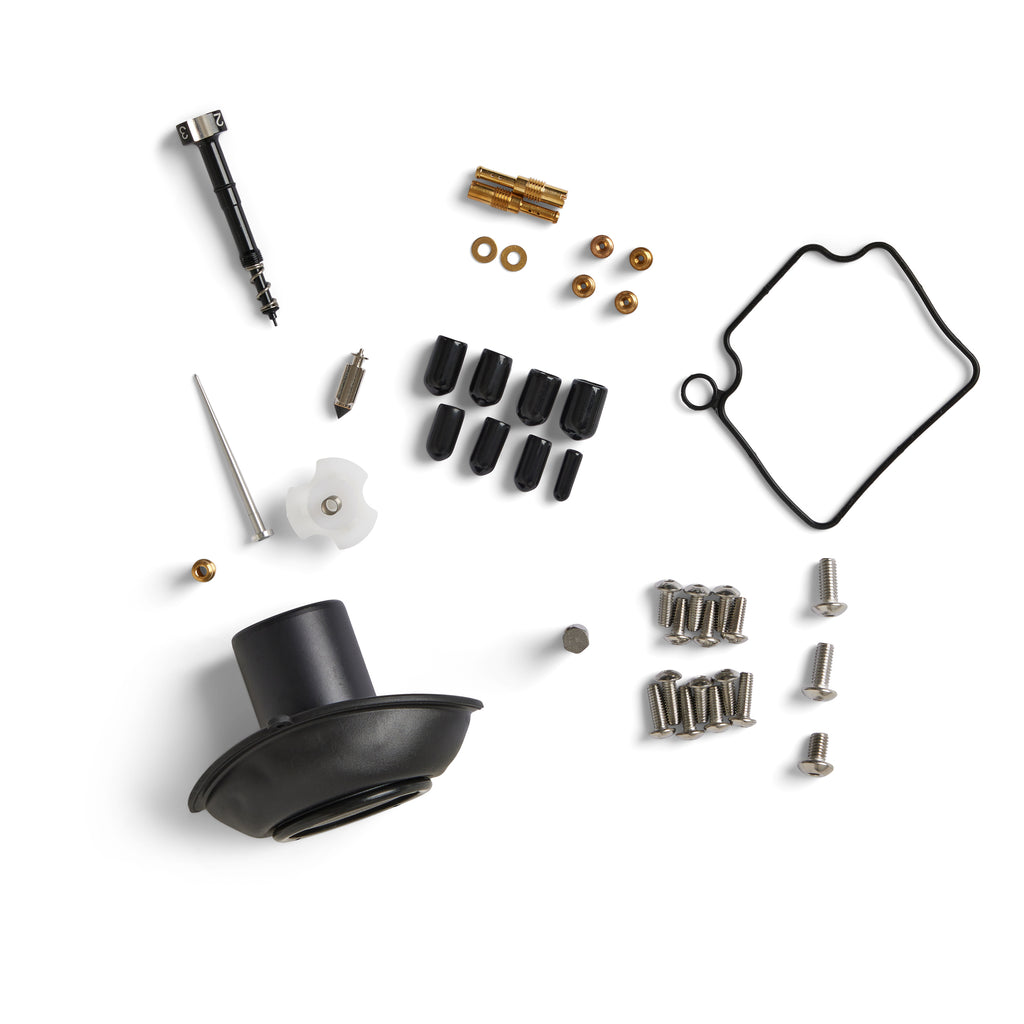

      Kit contains -

      • Qty 1 Float Needle
      • Qty 1 Stainless Bolt Replacement Kit
      • Qty 1 AFP Stainless Plug
      • Qty 1 D Bit (to remove the stock Air/Fuel Mix Screw)
      • Qty 1 A/F Long Handle Mix Screw
      • Qty 1 Single Carb Slide Assembly
      • Qty 1 Vacuum Plug kit
      • Qty 1 Performance Jet Kit which includes:
      • Main Jets - 1 of each - 142, 145, 148, 150
      • Pilot Jets - 1 of each - 48, 50
      • Qty 2 Needle Shims
      • Click here for our online tuning sheet, complete with carburetor diagram for throttle stage reference!

      You will need to remove the two plastic retainer rings on your stock slide in order to install the new diaphragms. A small set of dikes is all that's needed to clip them off. Install the diaphragm gently from the top of the slide. Be careful they can tear easily if you muscle them too hard or install them from the bottom. This diaphragm will hold itself in place in the channel at the top of your slide. When re-installing your slides, make sure the vent hole at the bottom of the slide is facing the cylinder head side of the carb.

      Be very careful when installing these diaphragms, they are fragile and soft and can tear very easily.
      Once the old diaphragm is removed, install the new diaphragm from the top of the slide don't attempt to shove the thing up from the bottom of the slide. This will guarantee you tear the slide! Use your fingernail to gently push the inner rib into the channel at the top of the slide. again the key word here is GENTLE!

      Check out our Performance Tuning and Rebuild Course!

      Customer Reviews

      Based on 16 reviews
      81%
      (13)
      13%
      (2)
      6%
      (1)
      0%
      (0)
      0%
      (0)
      B
      Benjamin

      Would've appreciated more detail as too what each extra bolt went too. And all the vacuum plugs go to where and which 1s to use. Just nore instructions. I know theres is the web site but specifics are limited sometimes. But overall. Good stuff. Thanks

      A
      Andy Nickel aka Candy Tickles
      Dependable

      Bike was pulled from the barn and after cleaning the tank, new tires, battery and fluids this kit was the cherry on top knowing it would run like a raped ape. Thanks again for the quality parts. TJBC rules.

      R
      Randy Castleberry
      AWESOME!

      This kit brought my bike to life! Super easy install and with the information on the site I was able to get the jetting spot on the first time! My bike is a different machine! Thanks TJ for all you bring to the table for the shadow!

      D
      Diego Troncoso

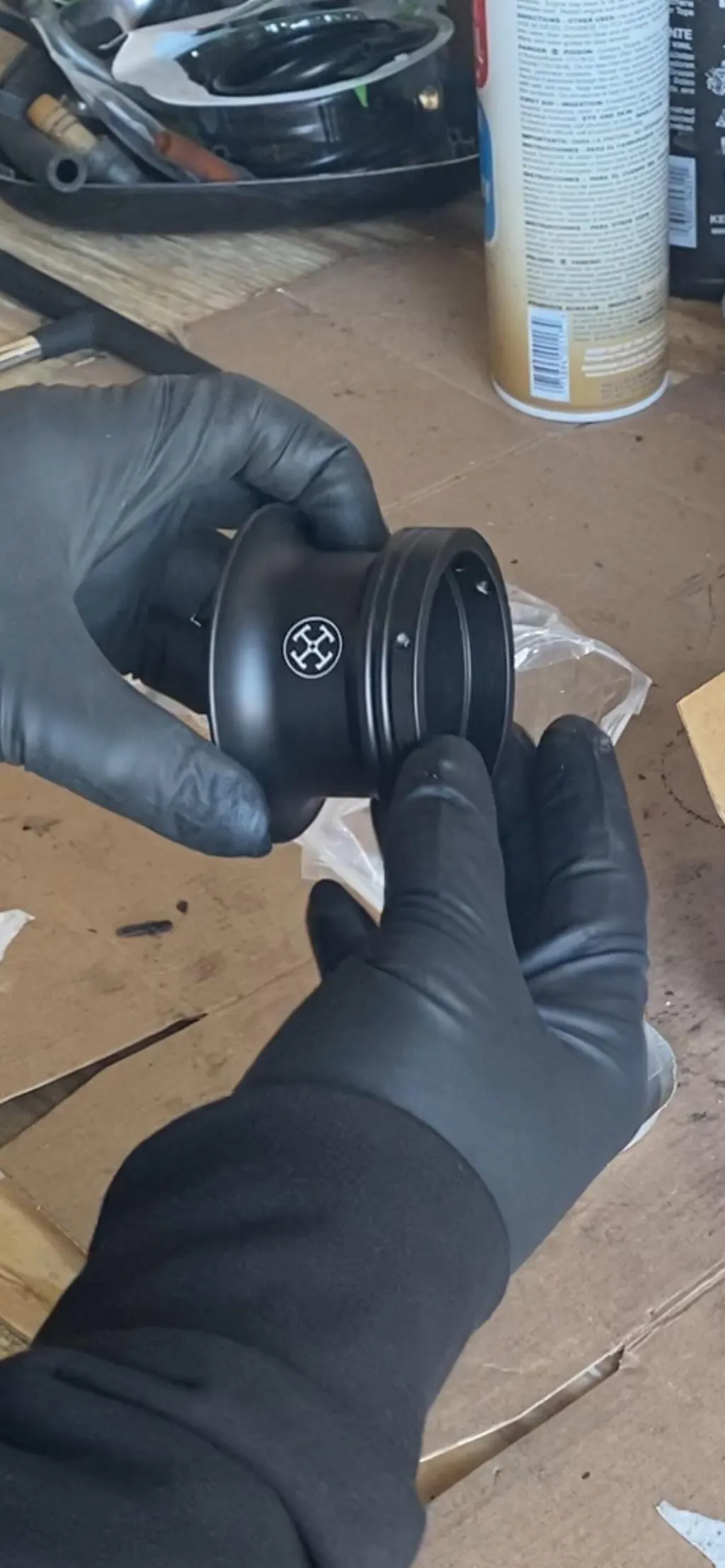

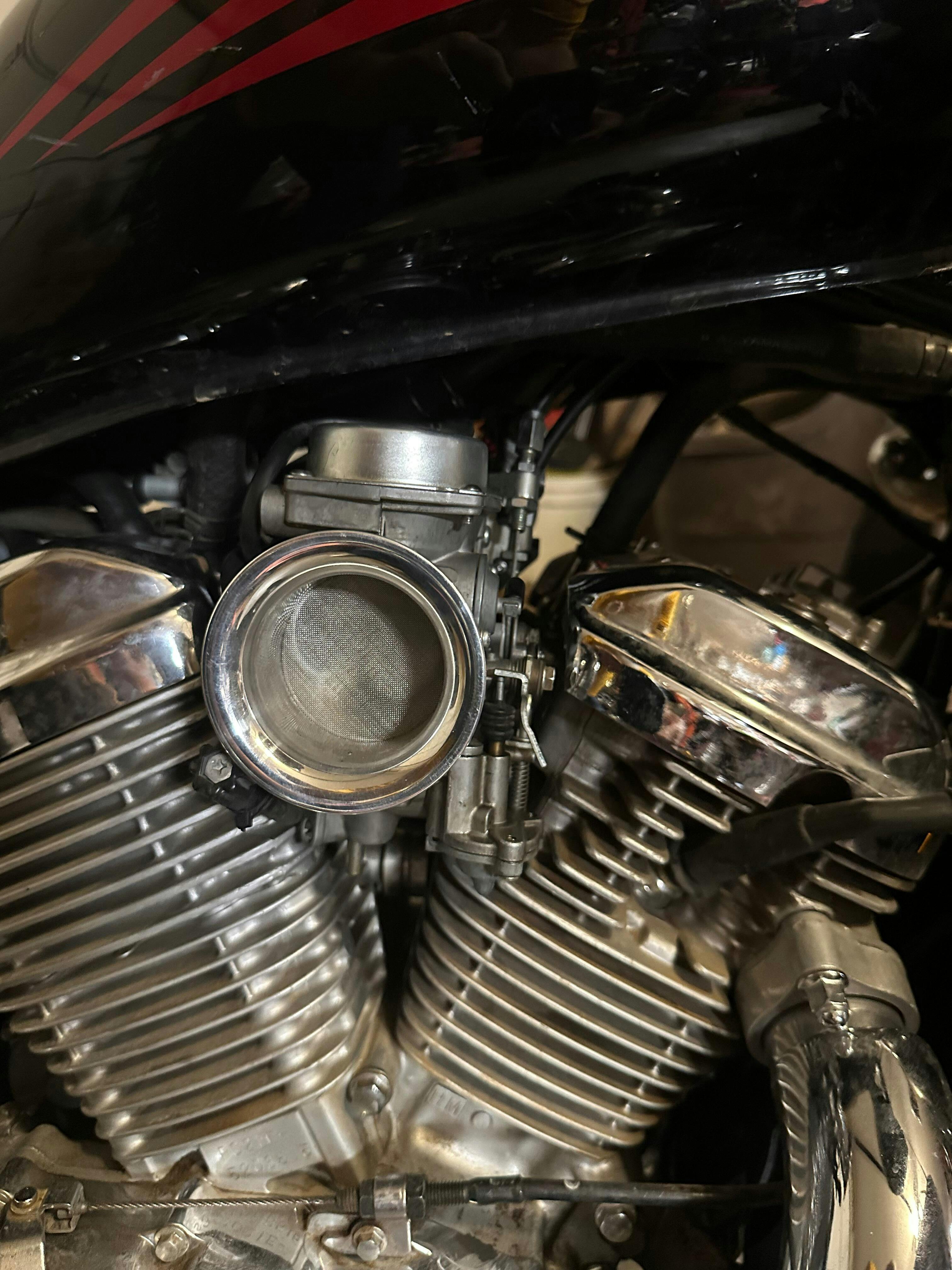

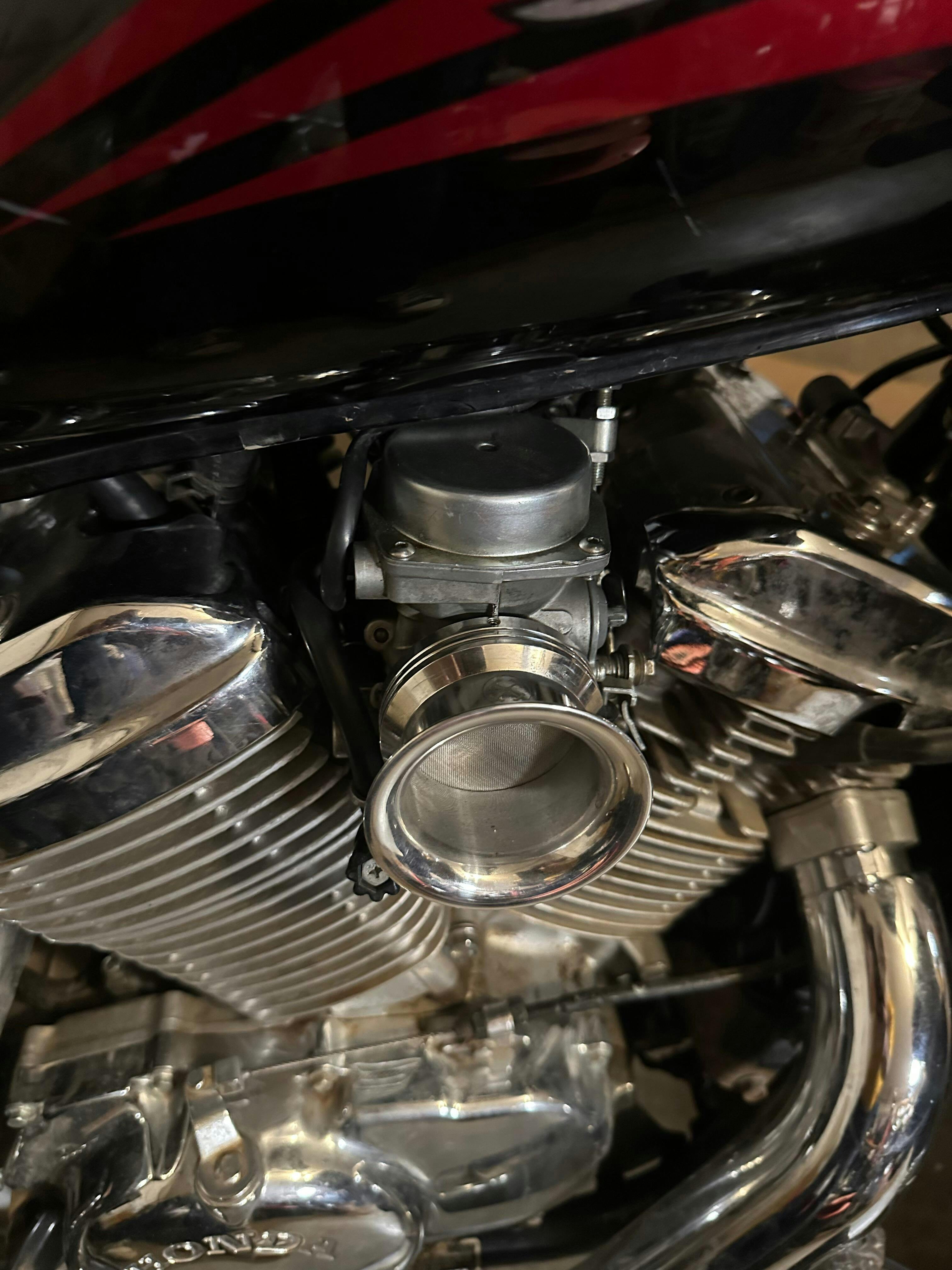

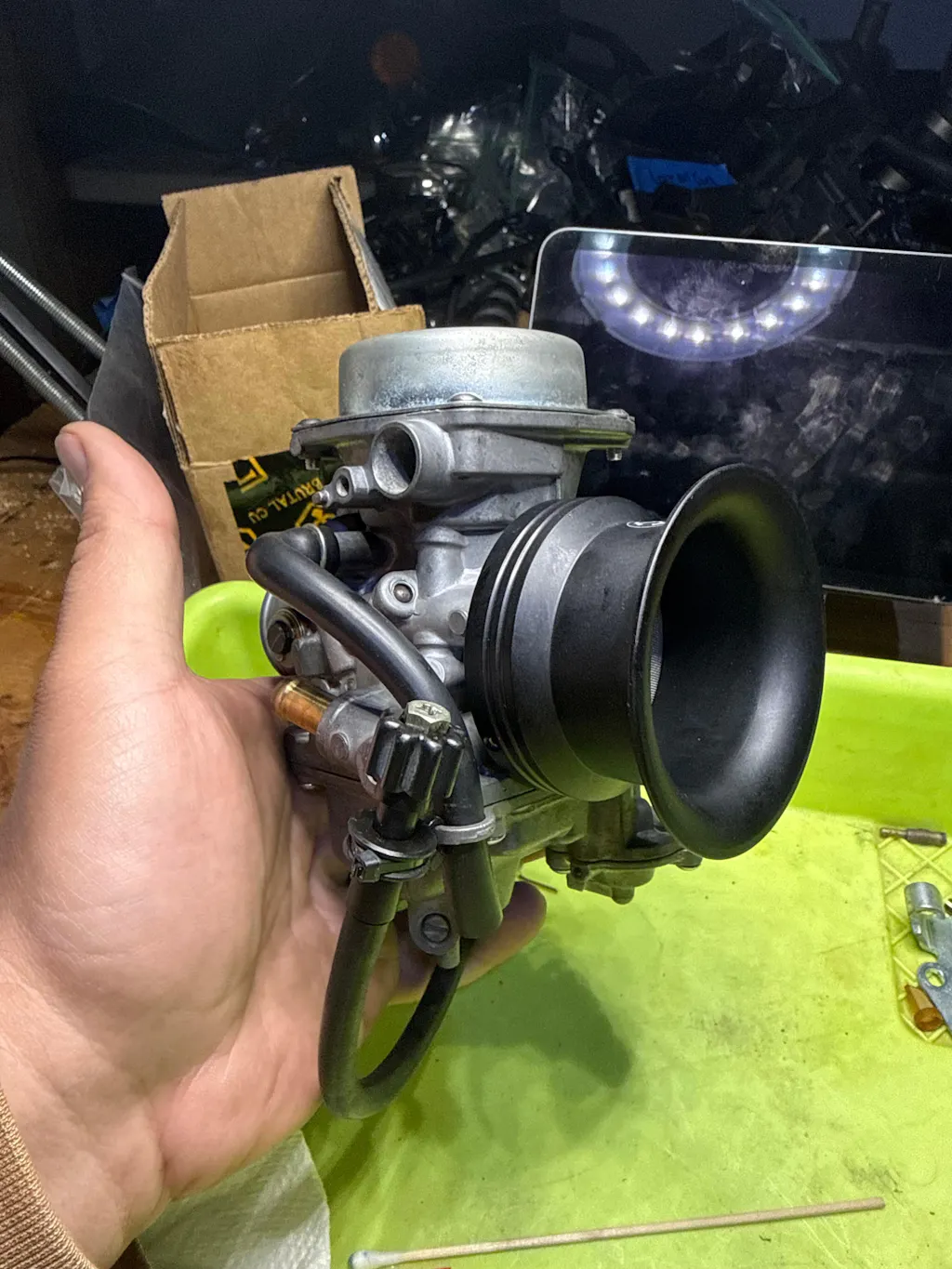

      Carb rebuild with velocity stack

      Great hardware, definitely brings life to my bike
      I appreciate B R U T A L

      J
      Jeffrey Atkins
      Complete

      Complete kit. Easy install. Great price for quality! Thanks!
