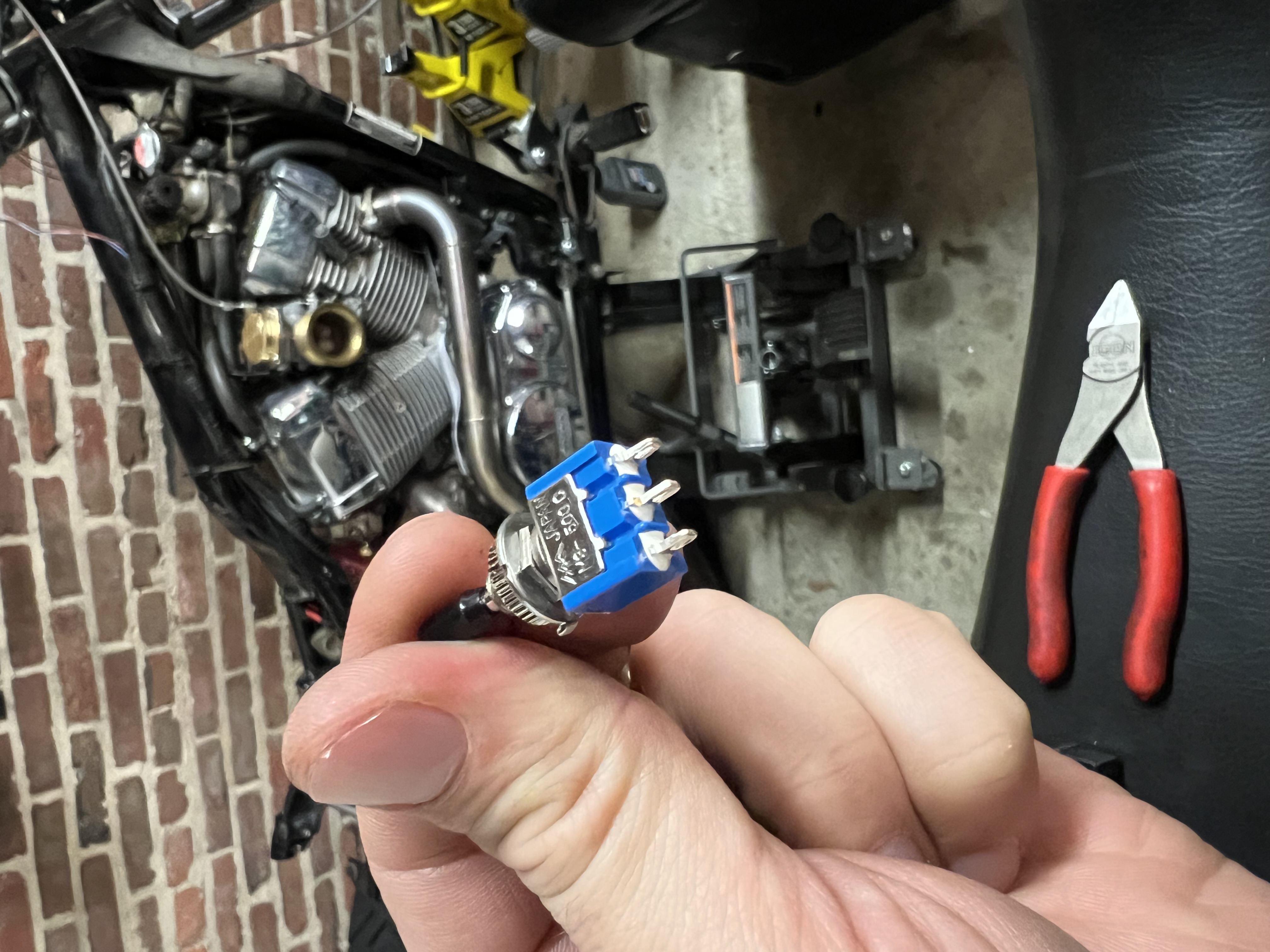

2005 Shadow 750 Aero: I'm replacing my handlebars and going with all custom switches, the last 2 things to figure out are the headlight and turn signal switch. I'll be using a 3 prong switch and no longer running the OEM odometer and lights. Which wires do I need to be running to the switch?
Search
Forum statistics
- Page views (24h):
- 769
- Page views (30d):
- 21,538
- Topics:
- 700
- Posts:
- 2,085
- Members:
- 1,247
Newest members
Most liked authors
New blinker switch wiring
-
Parker New Member
-
TJ Admin Staff memberModeratorMember who has the rights to delete posts, and ban members form forum if they violate the rules.@Parker i have never used my turn signals. i spoent m0onths trying to find the correct switch to make the turn signals work and since i wasnt going to run them anyway i said screw it. im sorry i dont have any further info on this, perhaps someone else can chime in and offer some deeper wisdom than i have which is, throw them away LOL
-

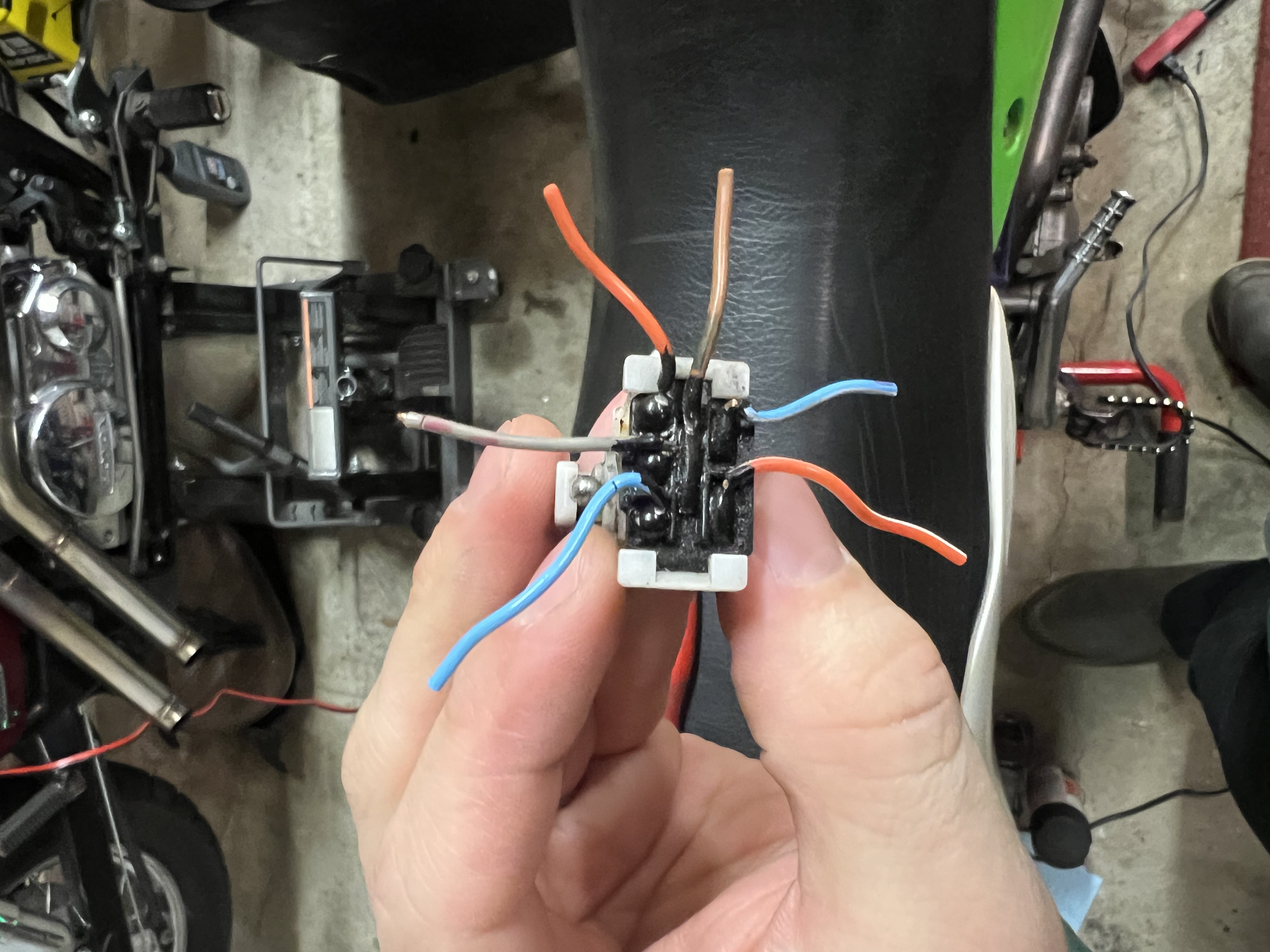

If you are not using the running lights, you only need the top row. Solid orange and solid blue are the signals. don't remember which is right and left, and the gray wire in the center. the striped ones are your running lights.
