Custom Peanut Gas Tank for Honda Shadow VTX1300

This custom peanut gas tank for Honda Shadows is made to perfectly fit the backbone of the Honda Shadow VTX1300.

This is not a retro-fitted tank that has been hacked apart, with a horrible looking tunnel welded closed. This Honda Shadow gas tank is made to mount to the backbone of your bike, is made by hand by TJ Brutal Customs and will last for years to come.

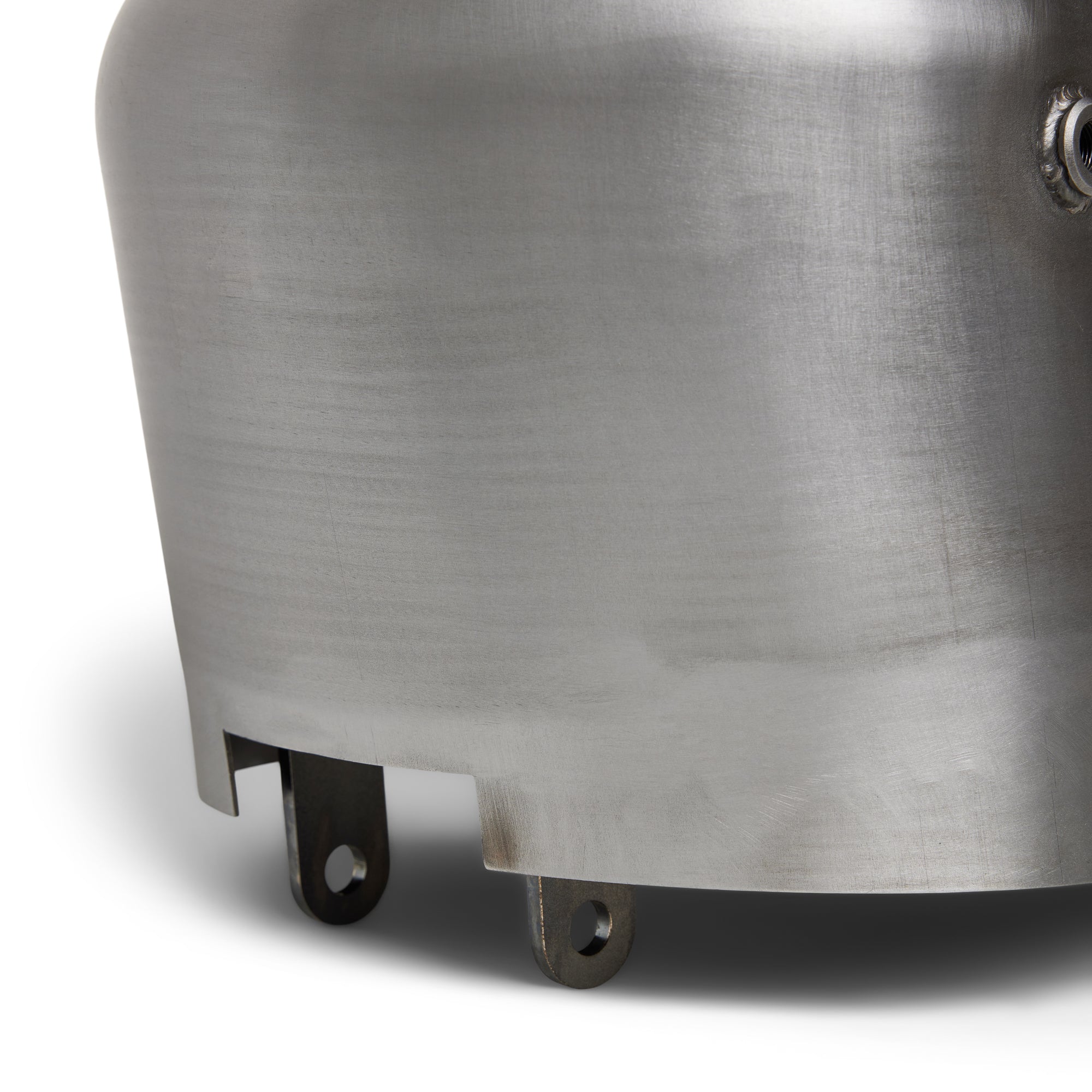

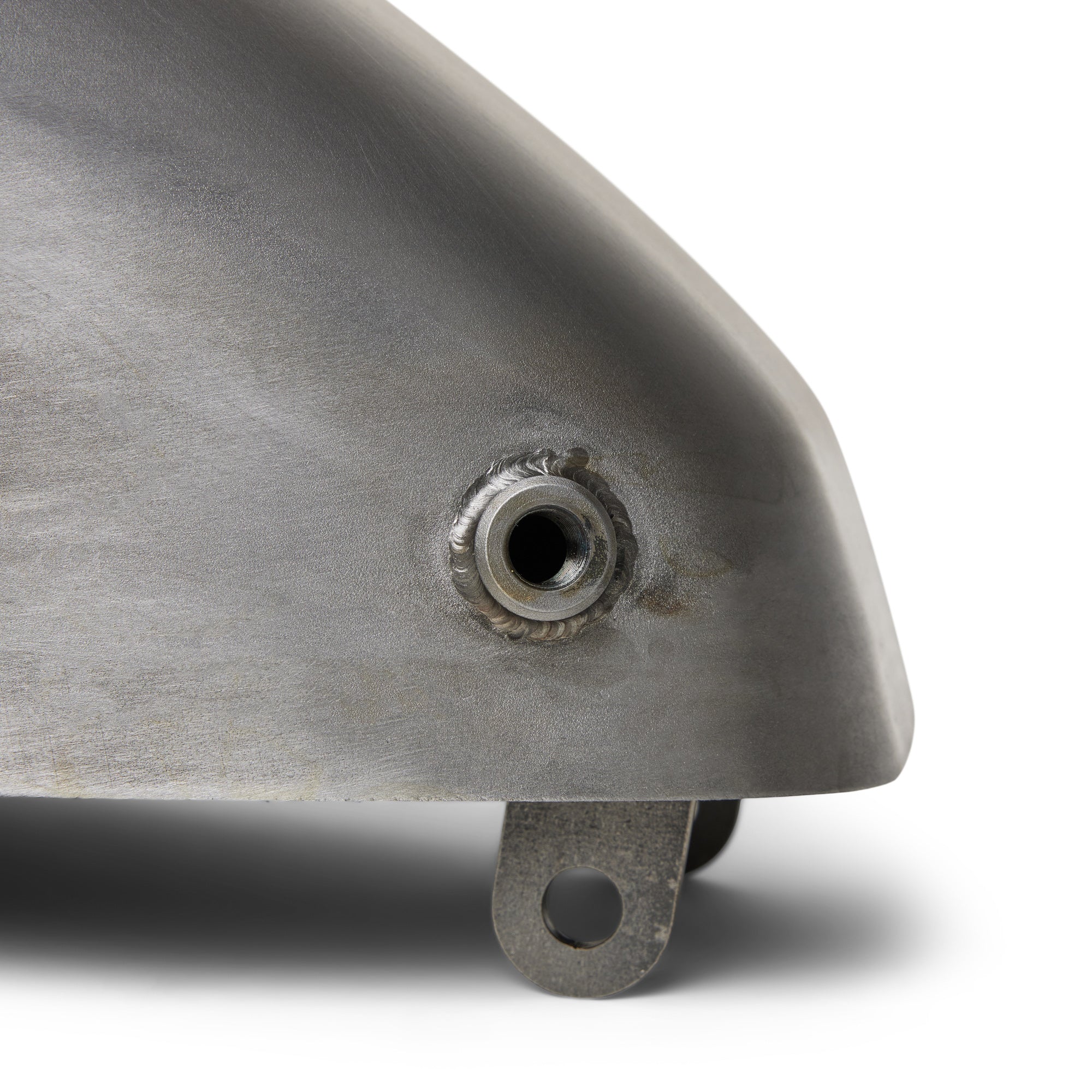

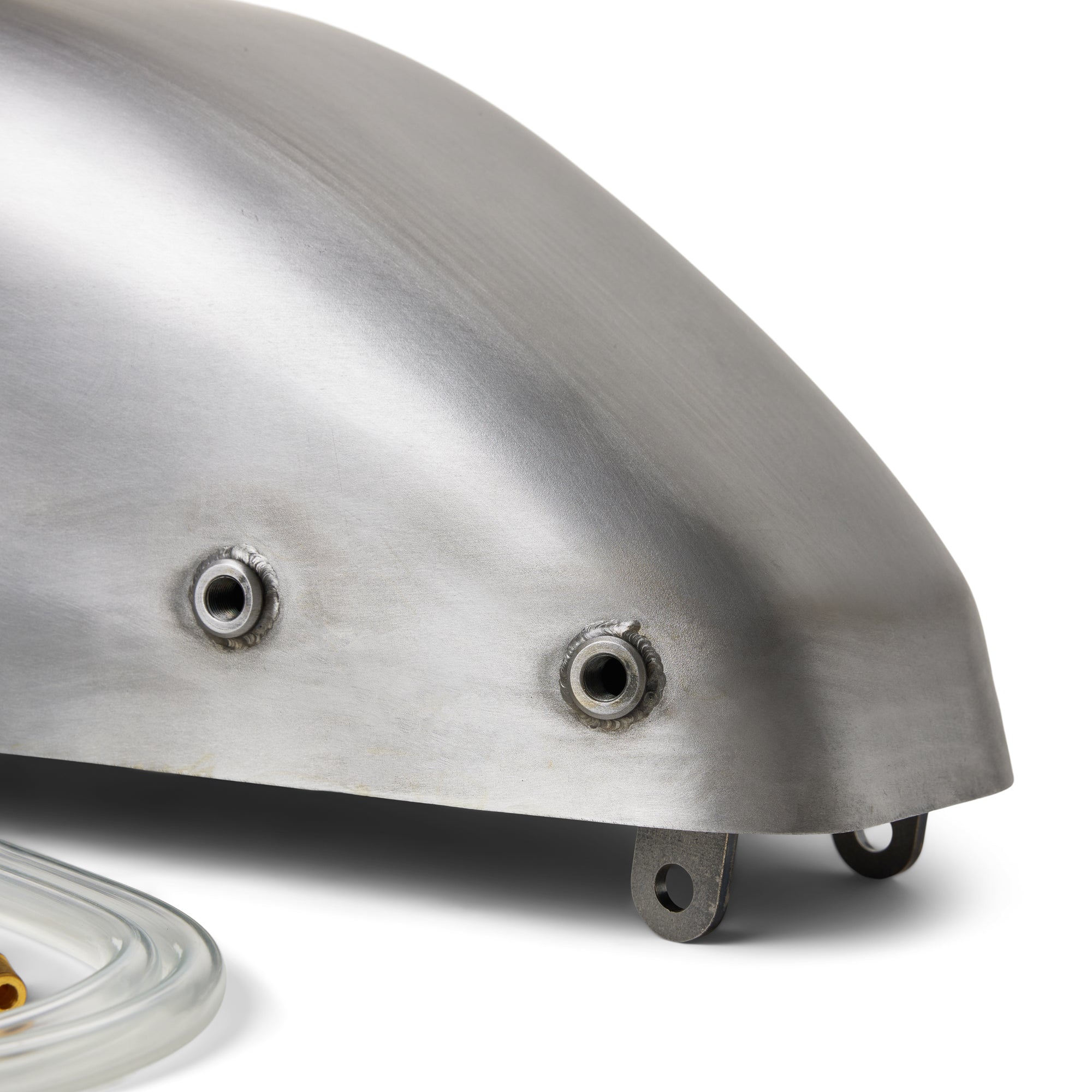

Installation is easy, set the tank on the backbone where you want it to be and mark the mounting tabs on your frame preferably with a transfer punch. Then drill a pilot hole, and follow with a 3/8" or 25/64" hole into the frame. Then just re-mount the tank and bolt it on with the included hardware!!

Tank Dimensions are approx - 16"L, 9.25"W, 8"D
Capacity - Approx. 2.4 gallons+-

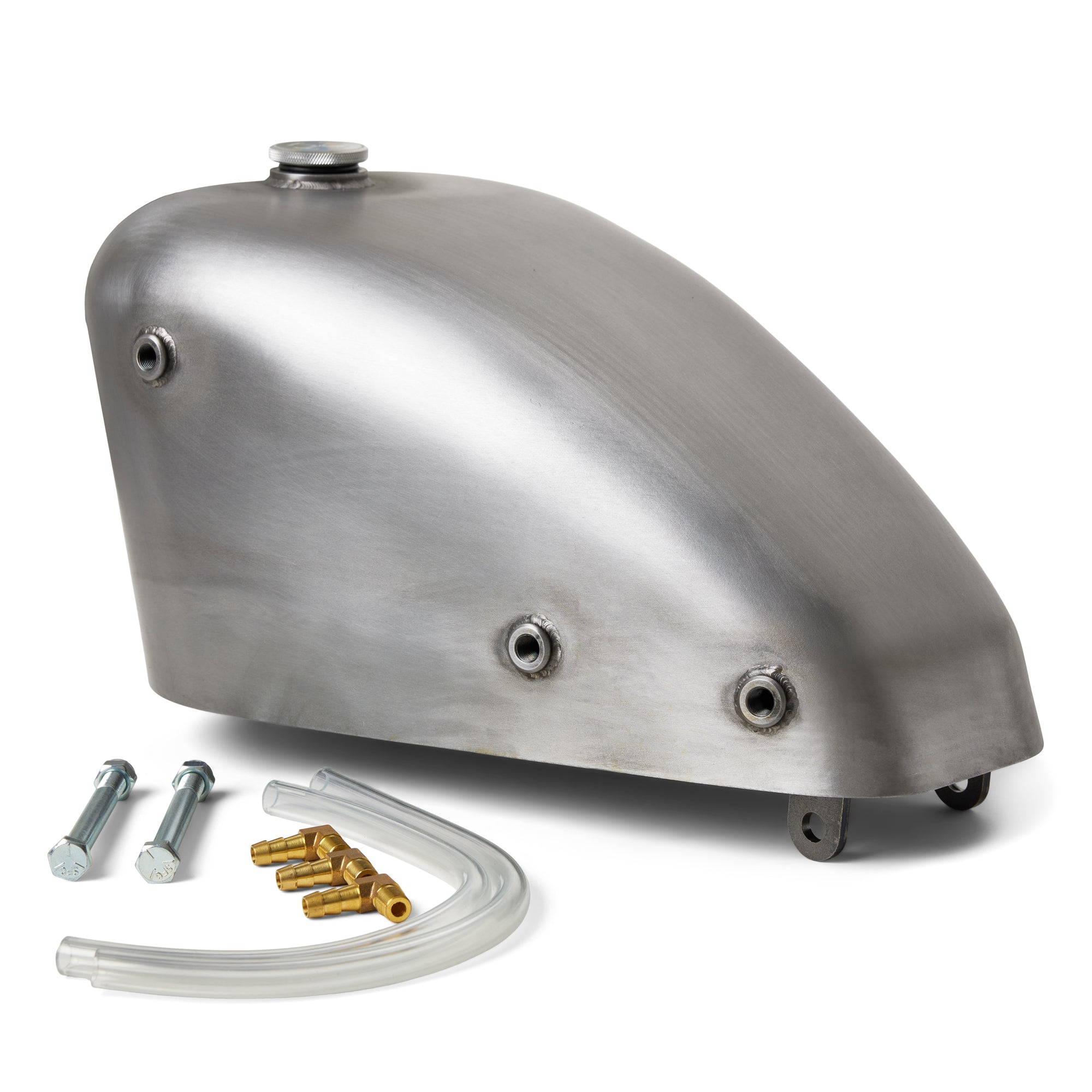

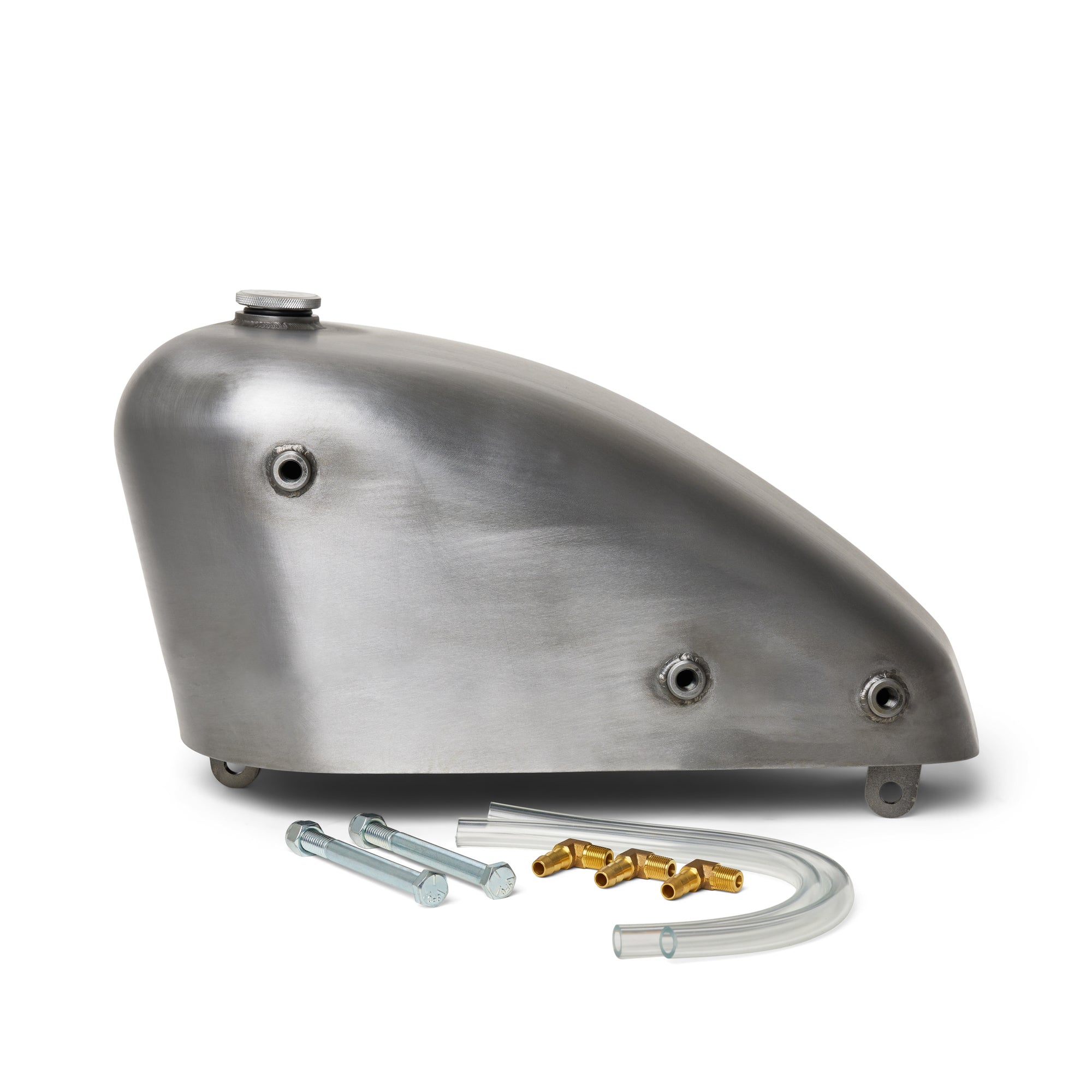

Includes:

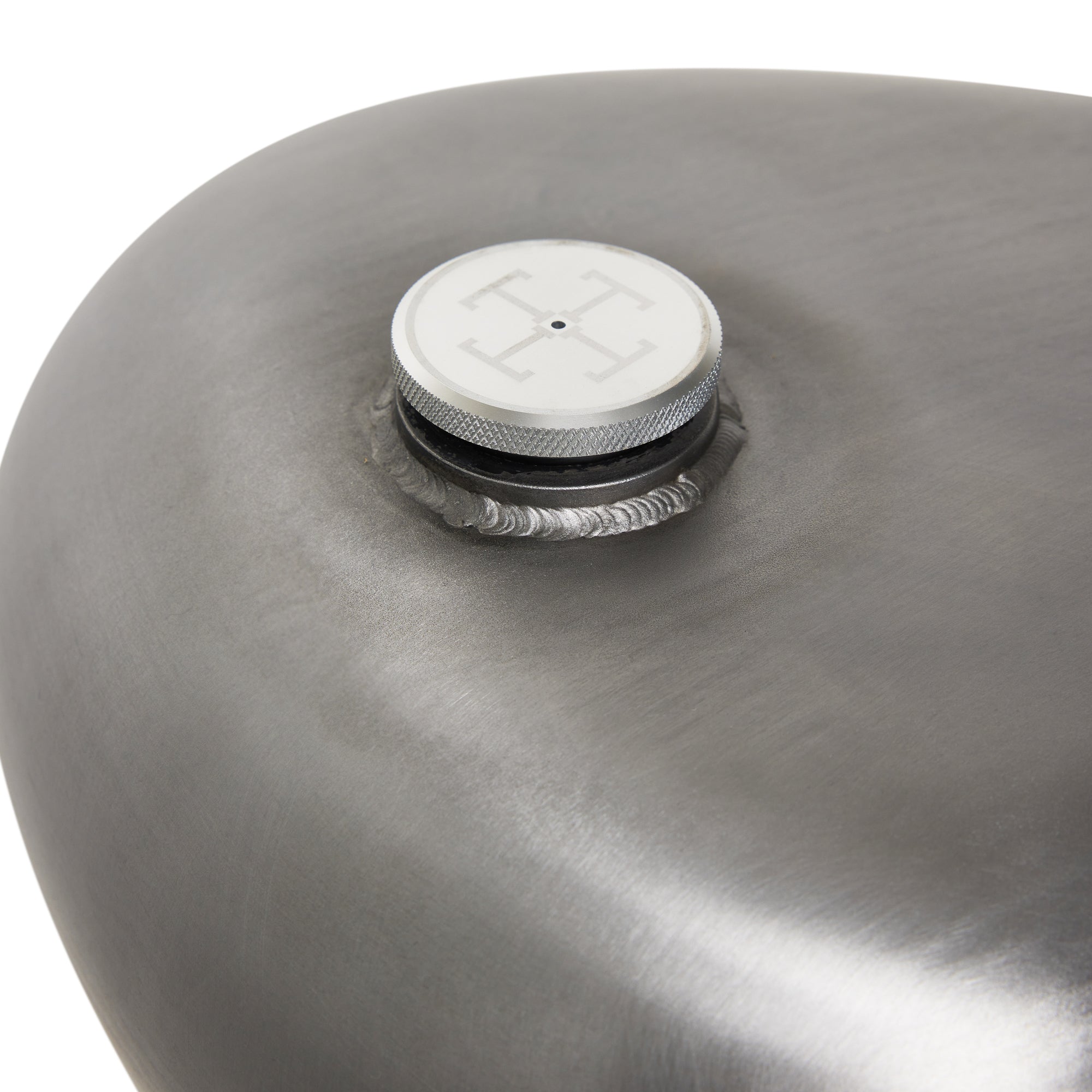

• TJ Brutal Customs Vented aluminum gas cap
• Fuel line
• Barbed fuel fittings
• Mounting hardware
• Will require a petcock, you can get one HERE
• Fuel bung is 1/8" NPT
• Will not fit stock petcock
• Tanks are not lined. We recommend using Red-Kote!

**Note:   To prevent spillage from fuel expansion and vibration, do not overfill, fill within about an inch from the filler neck.  We also recommend using T-tape on all plumbing threads. You do need to line these tanks. They will rust eventually and then you will be big time sad when the gas starts to ruin your sexy 1800$ paint job from the inside out. **

Guess I have to say this - These tanks are raw steel. If you don't paint them, they will rust. DURRRRR!
