MAX Fuel Kit - Honda Shadow EFI Models - VT750 Phantom, AERO, Spirit

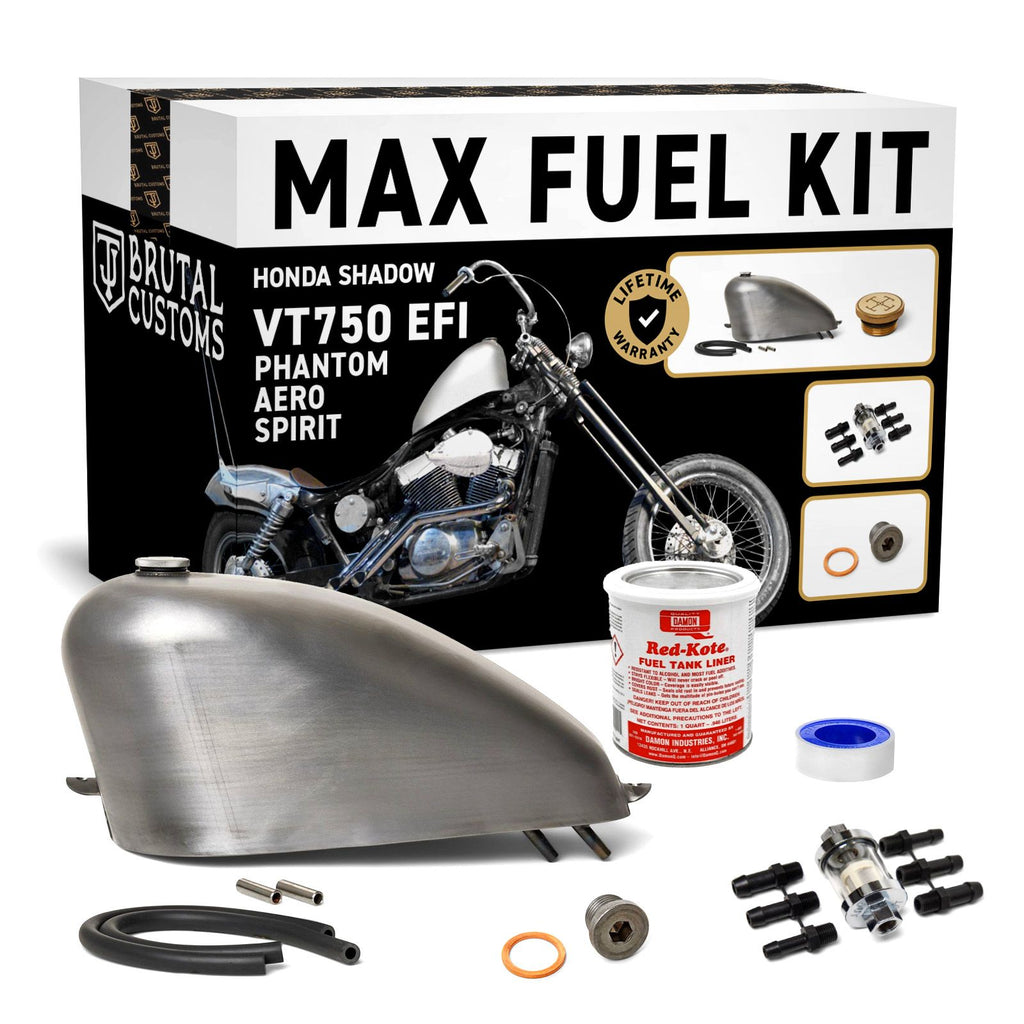

SAVE over $100!!  Introducing the MAX FUEL KIT for Honda Shadow EFI Models - VT750 Phantom, AERO, Spirit

When it comes to upgrading your Honda Shadow to an aftermarket gas tank, avoid the hassle of hoping you ordered everything you need, only to find something doesn't fit or you forgot to get a part only costing you more time and money. That’s why we created the MAX FUEL KIT, the ultimate fuel system upgrade designed exclusively for Honda Shadow VT750 motorcycles.  This kit is built with every one of my favorite Fuel Kit parts that I use on my builds. This kit ensures fuel flow efficiency, superior durability, and an unconventional aesthetic that defines TJ Brutal Customs.

** Due to post office and customs limitations, Red-Kote does not ship internationally, therefore if international, choose the MAX FUEL KIT with NO RED-KOTE! **

This TJ Brutal Customs Honda Shadow Gas tank will fit the following Honda Shadow models ONLY:

• 2010 VT750C2B A PHANTOM
  2010 VT750C2B AC PHANTOM
• 2011 VT750C-A AERO
  2011 VT750C-AC AERO
  2011 VT750C2B A PHANTOM
  2011 VT750C2B AC PHANTOM
• 2012 VT750C-A AERO 1
  2012 VT750C-AC AERO 1
  2012 VT750C2 A SHADOW SPIRIT 750
  2012 VT750C2 AC SHADOW SPIRIT 750
  2012 VT750C2B A PHANTOM
  2012 VT750C2B AC PHANTOM
  2012 VT750C2F A SHADOW SPIRIT 750
  2012 VT750C2F AC SHADOW SPIRIT 750
  2012 VT750CA A AERO
  2012 VT750CA AC AERO
• 2013 VT750C A AERO
  2013 VT750C AC AERO
  2013 VT750C2 A SHADOW SPIRIT (MONO TONE)
  2013 VT750C2 AC SHADOW SPIRIT (MONO TONE)
  2013 VT750C2B A PHANTOM
  2013 VT750C2B AC PHANTOM
  2013 VT750C2F A SHADOW SPIRIT (W/FLAME)
  2013 VT750C2F AC SHADOW SPIRIT (W/FLAME)
  2013 VT750CA A AERO
  2013 VT750CA AC AERO
• 2014 VT750C-A AERO
  2014 VT750C-AC AERO
  2014 VT750C2 A SHADOW SPIRIT 750
  2014 VT750C2 AC SHADOW SPIRIT 750
  2014 VT750C2B A PHANTOM
  2014 VT750C2B AC PHANTOM
  2014 VT750C2F A SHADOW SPIRIT 750
  2014 VT750C2F AC SHADOW SPIRIT 750
  2014 VT750CA A AERO
  2014 VT750CA AC AERO
• 2015 VT750C-A AERO
  2015 VT750C-AC AERO
  2015 VT750C2B A PHANTOM
  2015 VT750C2B AC PHANTOM
• 2016 VT750C-A AERO
  2016 VT750C-AC AERO
  2016 VT750C2B A PHANTOM
  2016 VT750C2B AC PHANTOM
• 2017 VT750C2B A PHANTOM
  2017 VT750C2B AC PHANTOM
• 2018 VT750C-A AERO
  2018 VT750C-AC AERO
  2018 VT750C2B A PHANTOM
  2018 VT750C2B AC PHANTOM
• 2019 VT750C A SHADOW 750
  2019 VT750C AC SHADOW 750
  2019 VT750C2B A PHANTOM
  2019 VT750C2B AC PHANTOM
• 2020 VT750C-A AERO
  2020 VT750C-AC AERO
  2020 VT750C2B A PHANTOM
  2020 VT750C2B AC PHANTOM
• All Aero and Phantom models from 2020 -2024

TANK INSTALLATION:

Sit your EFI Honda Shadow Phantom, AERO or Spirit upright as if you were going to ride it, have a seat and set the gas tank on the frame. While you are sitting on the bike, hold the gas tank and turn your bars left and right to make sure the tank is positioned far enough back on the backbone so it doesn't hit the risers or the bars when you turn them all the way, yet far enough forward that the rear tab is not hanging off the backbone.  You can zip tie, or tape the gas tank to the backbone during this fit process if you'd like, it also helps if a friend moves the bars for your while you hold the tank steady.

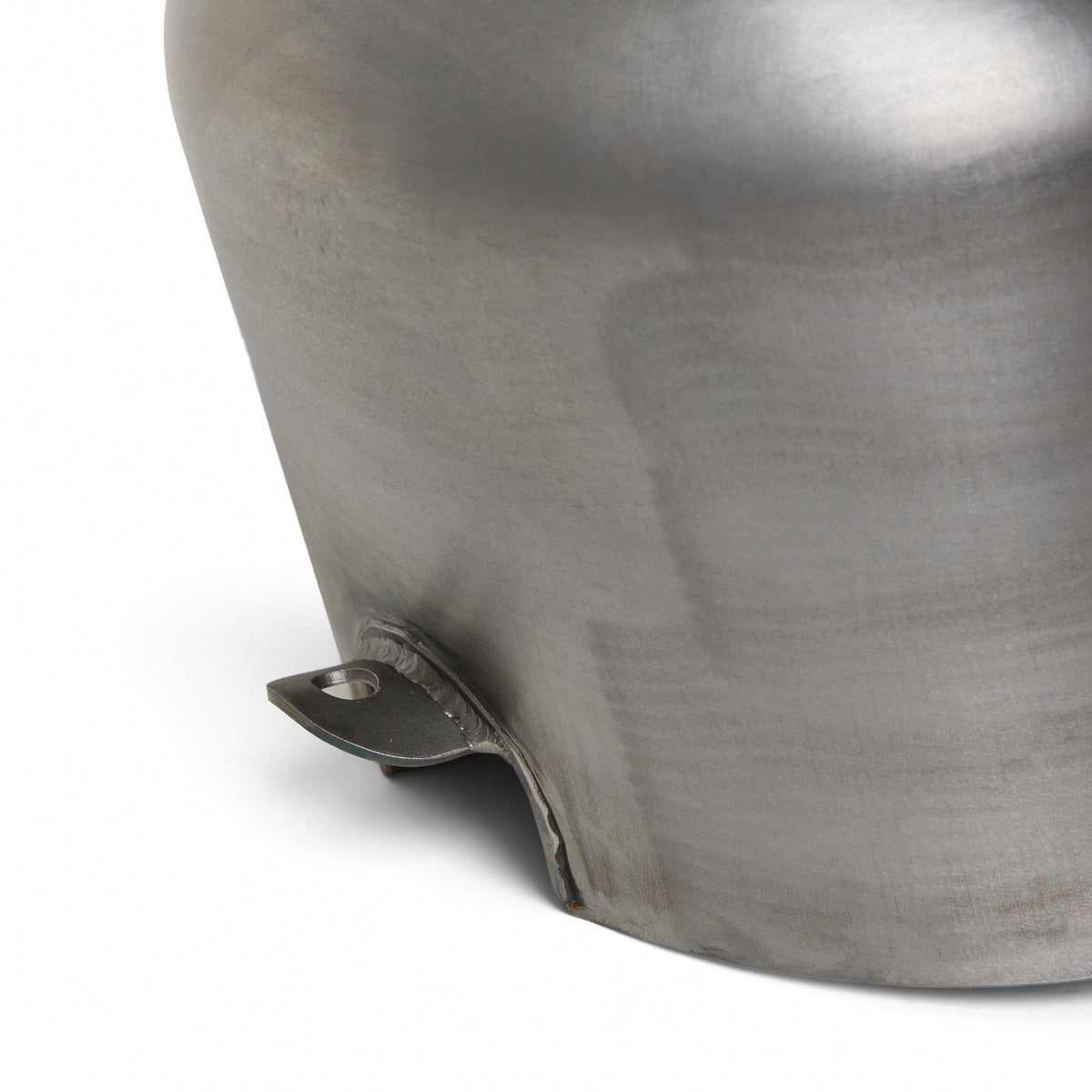

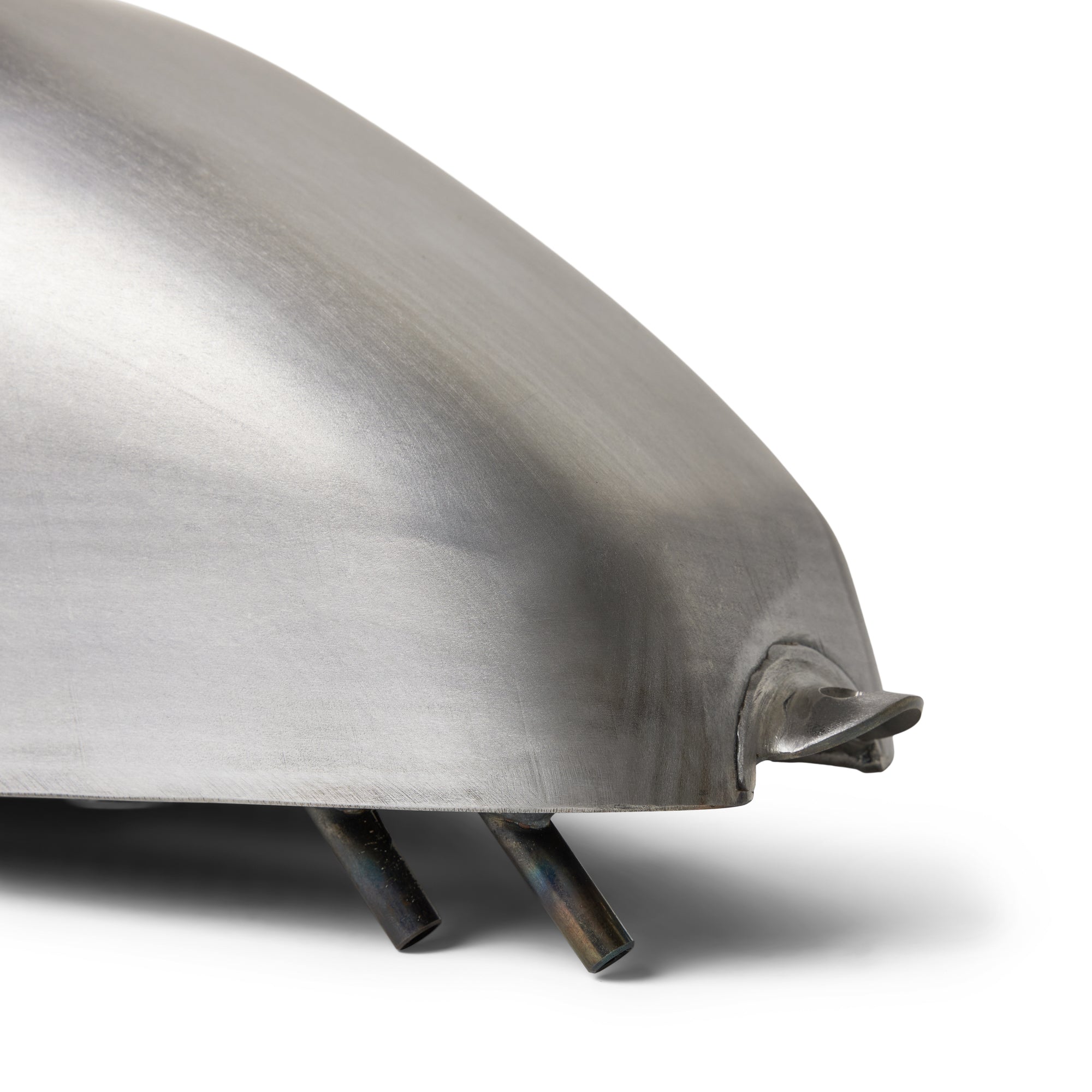

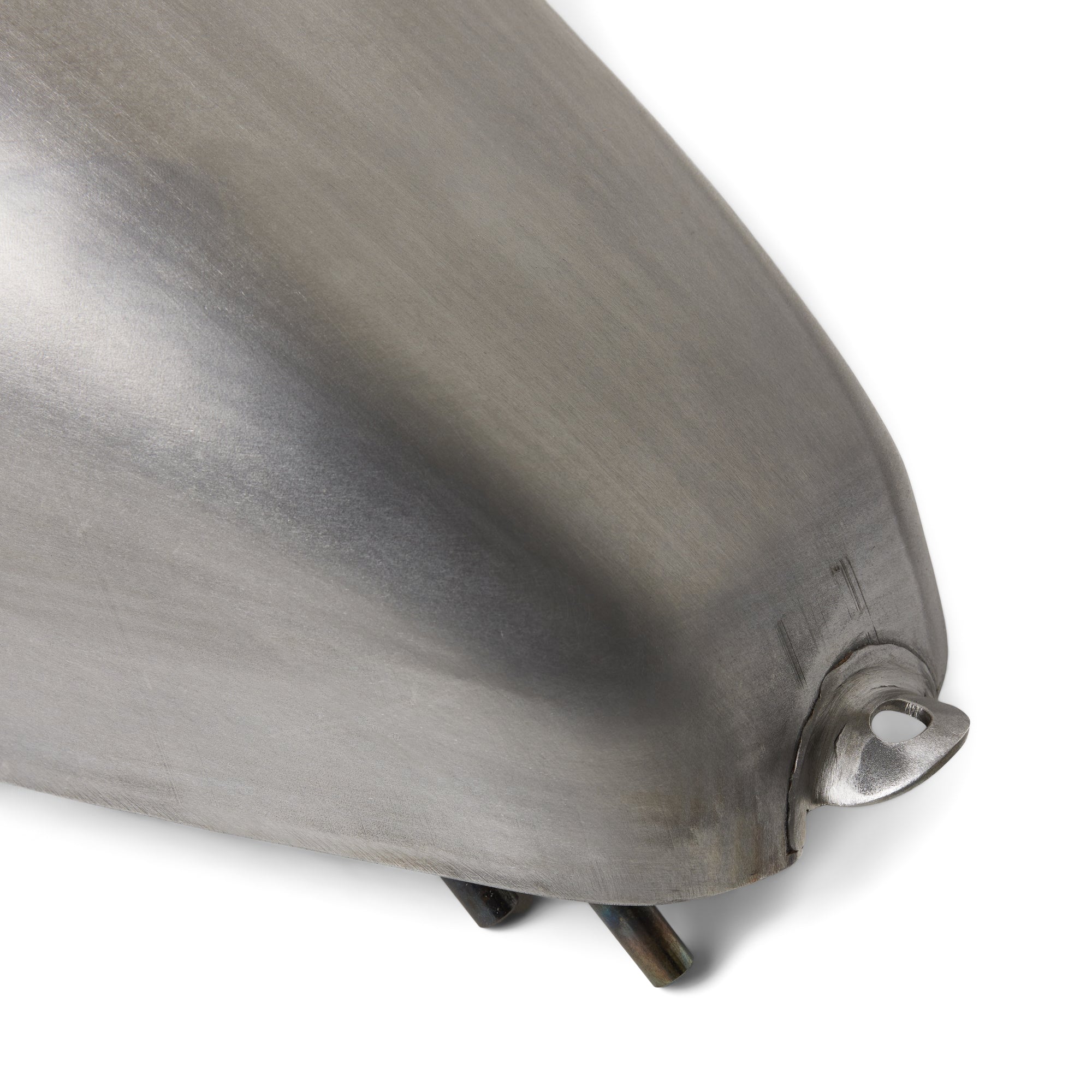

Once you have determined your bars wont hit the tank at full lock, mark where the front mounting tab is with a marker, and check that your rear tab isn't hanging off the back of the backbone, if it is you may need to re-adjust. In this case, wipe off the original marker and start over. Once you've decided on where to mount the tank, center punch the frame where you want the tabs to bolt to and drill a 5/16" hole.  You can then thread this with a 3/8-16" tap. You will preferably want to do the front mounting hole first, thread a bolt in and then locate, center punch, drill and tap the rear mounting point.

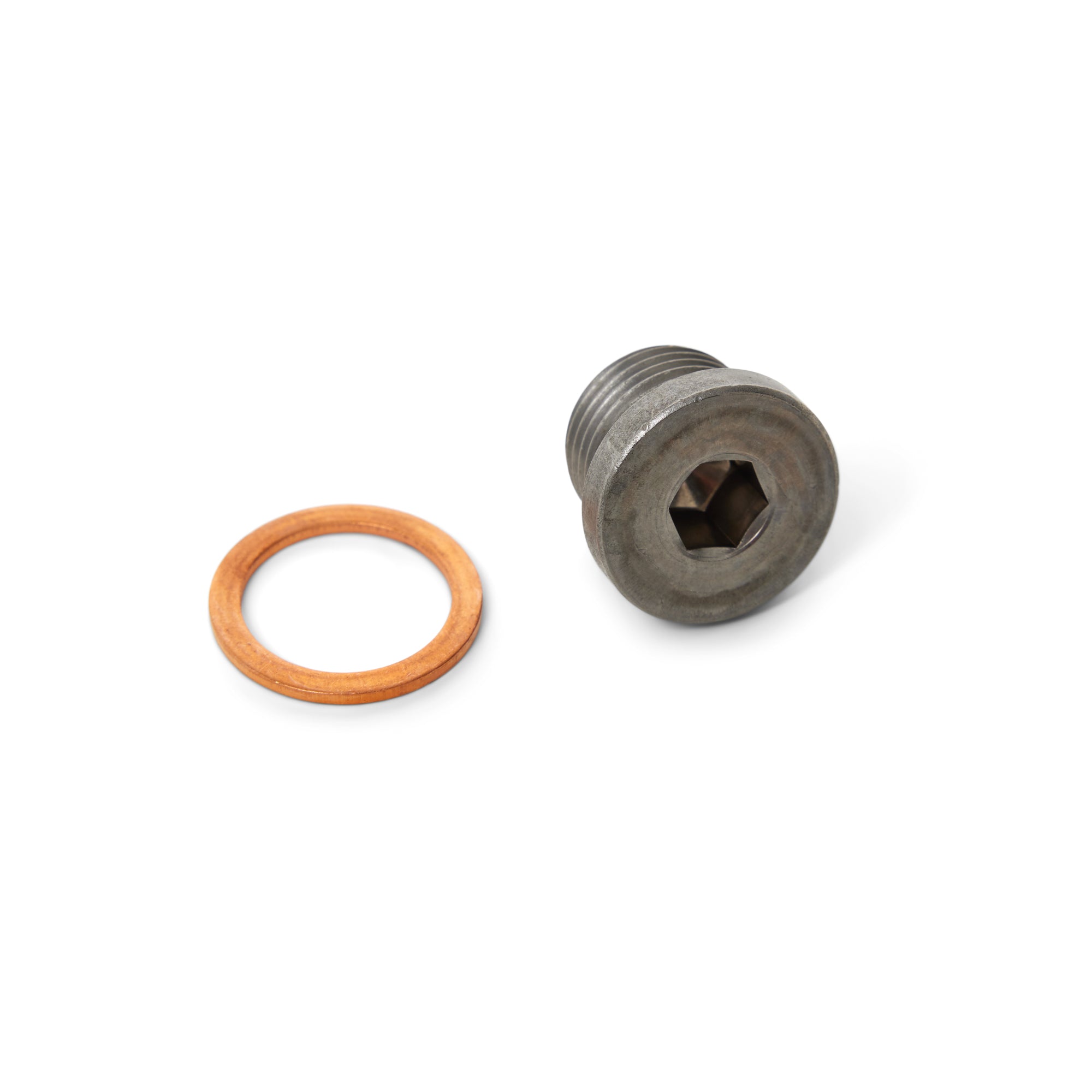

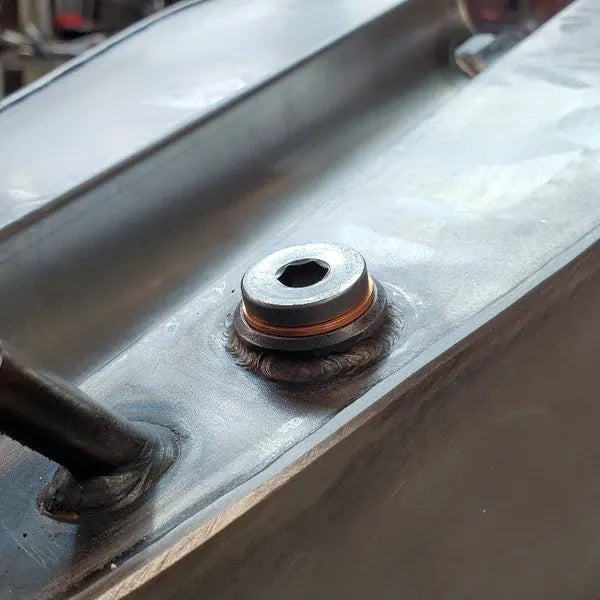

This Tank comes with the EFI Tank Fuel Reserve Sensor Plug. We added this bung to the tank, in the case that you wanted to relocate the reserve sensor light elsewhere on your custom build. However some of you may not want the dummy lights or have the reserve sensor bung available, so we offer you this plug to simply thread into the reserve sensor bung and keep the bike looking clean!

You can also use this to plug your stock tanks fuel reserve sensor bung as well!

This plug includes a copper washer, and we recommend using t-tape (teflon tape) on the threads of the plug before installing

Let’s break down exactly what makes this kit a must-have for every Shadow VT750 rider.

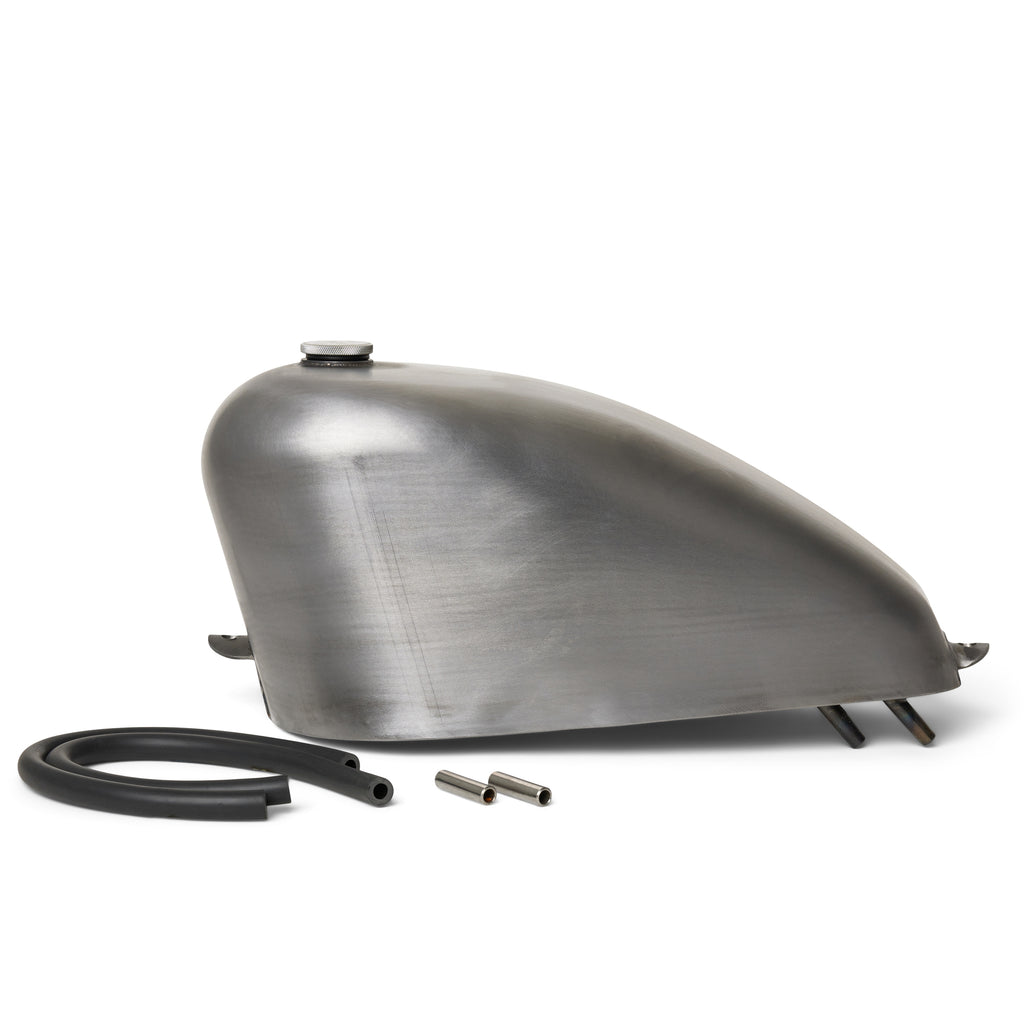

Handmade TJ Brutal Customs Gas Tank

At the heart of the MAX FUEL KIT is our handcrafted TJ Brutal Customs Gas Tank.

This is not a sporty tank that has been hacked apart, with a badly welded tunnel.  This custom, hand made fuel tank doesn't sit 3 inches off your backbone leaving you with a massive gap between the end of the gas tank and frame. This tank sits perfectly on the backbone of your bike, is made by hand specifically for your EFI Honda Shadow Phantom, Honda Shadow Aero and Honda Shadow Spirit model and will last for years to come.

• These Custom Honda Shadow Gas Tanks are raw steel and will rust if left unpainted or plated just as any other tank would.

• Gas Tank Dimensions are - 16"L, 9.25"W, 8"D
• Capacity - Approx. 2.5 gallons+-.  Capacity can vary by up to 1/4 gal depending on fuel temperature.
• This tank does not include a sight gauge.

Tank Installation:

Sit your EFI Honda Shadow Phantom, AERO or Spirit upright as if you were going to ride it, have a seat and set the gas tank on the frame. While you are sitting on the bike, hold the gas tank and turn your bars left and right to make sure the tank is positioned far enough back on the backbone so it doesn't hit the risers or the bars when you turn them all the way, yet far enough forward that the rear tab is not hanging off the backbone.  You can zip tie, or tape the gas tank to the backbone during this fit process if you'd like, it also helps if a friend moves the bars for your while you hold the tank steady.

Once you have determined your bars wont hit the tank at full lock, mark where the front mounting tab is with a marker, and check that your rear tab isn't hanging off the back of the backbone, if it is you may need to re-adjust. In this case, wipe off the original marker and start over. Once you've decided on where to mount the tank, center punch the frame where you want the tabs to bolt to and drill a 5/16" hole.  You can then thread this with a 3/8-16" tap. You will preferably want to do the front mounting hole first, thread a bolt in and then locate, center punch, drill and tap the rear mounting point.

This Tank comes with the EFI Tank Fuel Reserve Sensor Plug. We added this bung to the tank, in the case that you wanted to relocate the reserve sensor light elsewhere on your custom build. However some of you may not want the dummy lights or have the reserve sensor bung available, so we offer you this plug to simply thread into the reserve sensor bung and keep the bike looking clean!

You can also use this to plug your stock tanks fuel reserve sensor bung as well!

This plug includes a copper washer, and we recommend using t-tape (teflon tape) on the threads of the plug before installing

For added customization, we offer your choice of a solid brass fuel cap or an aluminum fuel cap, both designed to complement the vintage-inspired design of the tank.

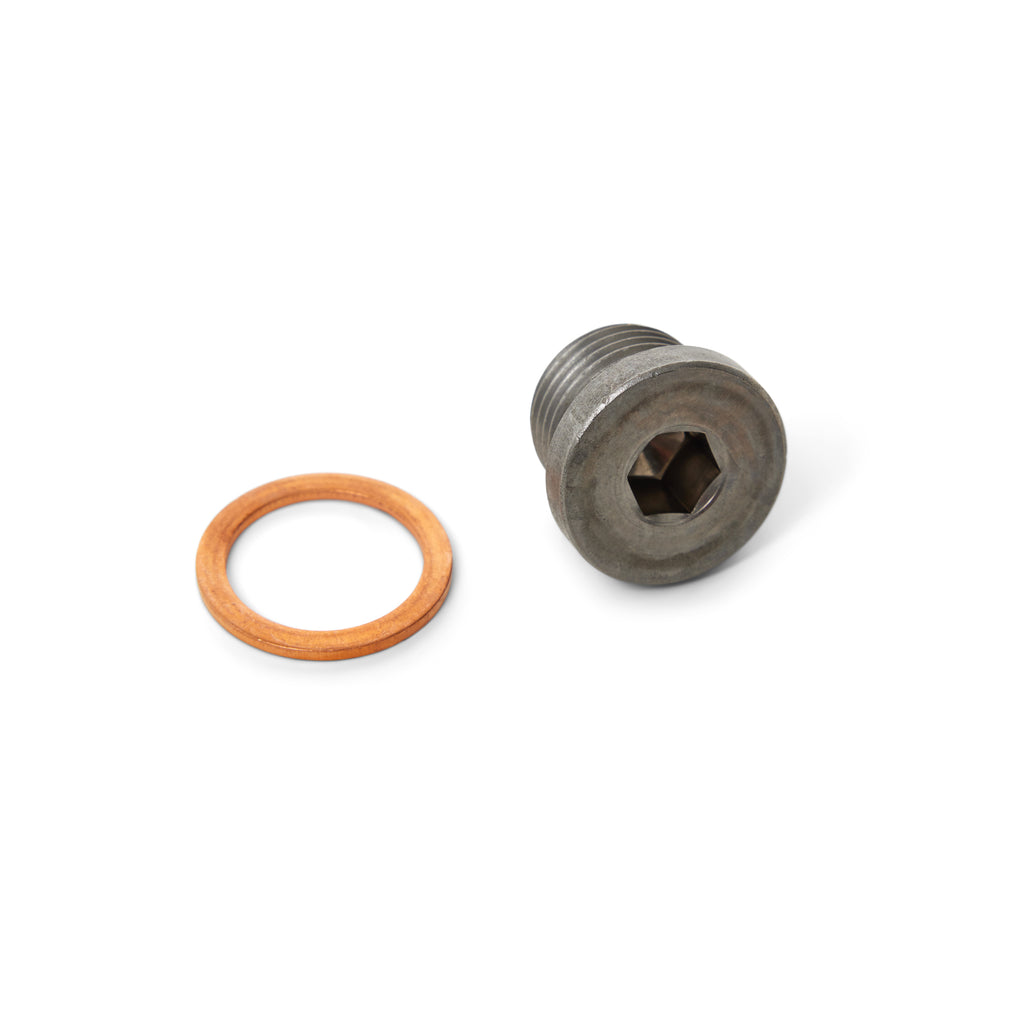

This EFI Tank Fuel Reserve Sensor Plug is meant to plug the Fuel Reserve Sensor Bung. We added this bung to the tank, in the case that you wanted to relocate the reserve sensor light elsewhere on your custom build. However some of you may not want the dummy lights or have the reserve sensor bung available, so we offer you this plug to simply thread into the reserve sensor bung and keep the bike looking clean!

This plug includes a copper washer, and we recommend using t-tape (teflon tape) on the threads of the plug before installing

Premium Fuel Line Kit

A great fuel system starts with quality fuel lines. Our Fuel Line Kit includes:

• High-quality fuel line for reliable fuel delivery

• Metal hose connectors for a secure, leak-proof connection

This combination guarantees that your fuel is flowing efficiently, with no leaks or weak points in the system.

T-Tape for Leak-Proof Seals

A high-performance fuel system is only as strong as its seals. That’s why we include a roll of T-Tape, designed to keep your fittings properly sealed for years to come. This ensures a leak-free fuel system and eliminates the risks of fuel leaks or seepage that can lead to engine performance issues and ruin that expensive mega flake flame paint job.

Stainless Steel Spring Wrap for Heat Protection

Heat damage is one of the most common causes of premature fuel line failure. To combat this, we’ve included stainless steel spring wrap to protect your fuel lines from excessive engine heat. This wrap acts as a heat shield, keeping your fuel lines intact and functioning properly no matter how long you ride.

Fuel Filter for Cleaner Fuel

A clean fuel system means a healthier, longer-lasting engine. The MAX FUEL KIT comes with a high-quality reusable fuel filter, designed to catch contaminants and debris before they reach your carburetor. This ensures only the cleanest, most efficient fuel is reaching your engine, optimizing performance and preventing potential clogging issues.

RedKote Tank Liner – The Best in the Game

If you know fuel tanks, you know how crucial a proper liner is. That’s why we include RedKote Tank Liner, one of the best tank liners on the market. This premium liner:

• Prevents rust and corrosion

• Seals small pinholes and leaks

• Protects your tank for years to come

With RedKote, your fuel tank remains in pristine condition, ensuring long-term reliability and peak fuel system efficiency.

Why Choose the MAX FUEL KIT?

The MAX FUEL KIT is more than just an upgrade—it’s a complete fuel system transformation. This kit is designed for riders who demand the highest quality, best performance, and most badass aesthetic for their Honda Shadow VT750. With premium materials, expert craftsmanship, and unparalleled attention to detail, the MAX FUEL KIT gives you everything you need to ride with confidence.

Key Benefits:

✔ Handmade TJ Brutal Customs Gas Tank – A head-turning custom piece built to last
✔ Choice of Solid Brass or Aluminum Fuel Cap – High-quality and visually stunning
✔ Fuel Reserve Sensor Plug for EFI Tank – Simple and clean
✔ Complete Fuel Line Kit – Ensures secure and efficient fuel flow
✔ Low Profile Sight Gauge – Easily monitor your fuel level at a glance
✔ T-Tape for Sealing – Keeps your fittings tight and leak-free for years
✔ Stainless Steel Spring Wrap – Protects fuel lines from heat damage
✔ High-Quality Fuel Filter – Keeps contaminants out of your carburetor
✔ RedKote Tank Liner – Prevents rust and ensures long-term tank integrity
✔ Stainless Steel Hardware – Provides a secure and lasting fit

Upgrade Your Ride Today!

Don’t settle for subpar fuel systems that leave you stranded or struggling with leaks. The MAX FUEL KIT is built for riders who demand the best. Designed with quality, longevity, and performance in mind, this kit ensures your Honda Shadow VT750 runs as smooth, strong, and stylish as possible.

Ready to take your fuel system to the next level? Order your MAX FUEL KIT today and ride with confidence, knowing you have the best fuel system upgrade available!
